IPv6 MacOS Command Line Examples

Check out these additional IPv6 Resources:
Our IPv6 overview course at Udemy
Our IPv6 Custom Profiles for Wireshark
Our IPv6 classes at the Online School

Before I get started, let’s just clarify that besides MacOS or macOS, IPv6 is supported on iOS, ipadOS, tvOS, watchOS as well as on visionOS. The kernel that drives all those is called Darwin. In the context of Wireshark and packet capture, all Darwin-based operating systems support pcapng capture, either direclty (macOS), or via the rvi network interface (all other OSes).

Here are some great MacOS command line entries you can make to examine and configure IPv6.

Let’s start with some simple ones.

Since too many years ago, MacOS has supported IPv6 so it is very likely to be turned on.

First, let’s check the following command from the Terminal Window (complete output shown):

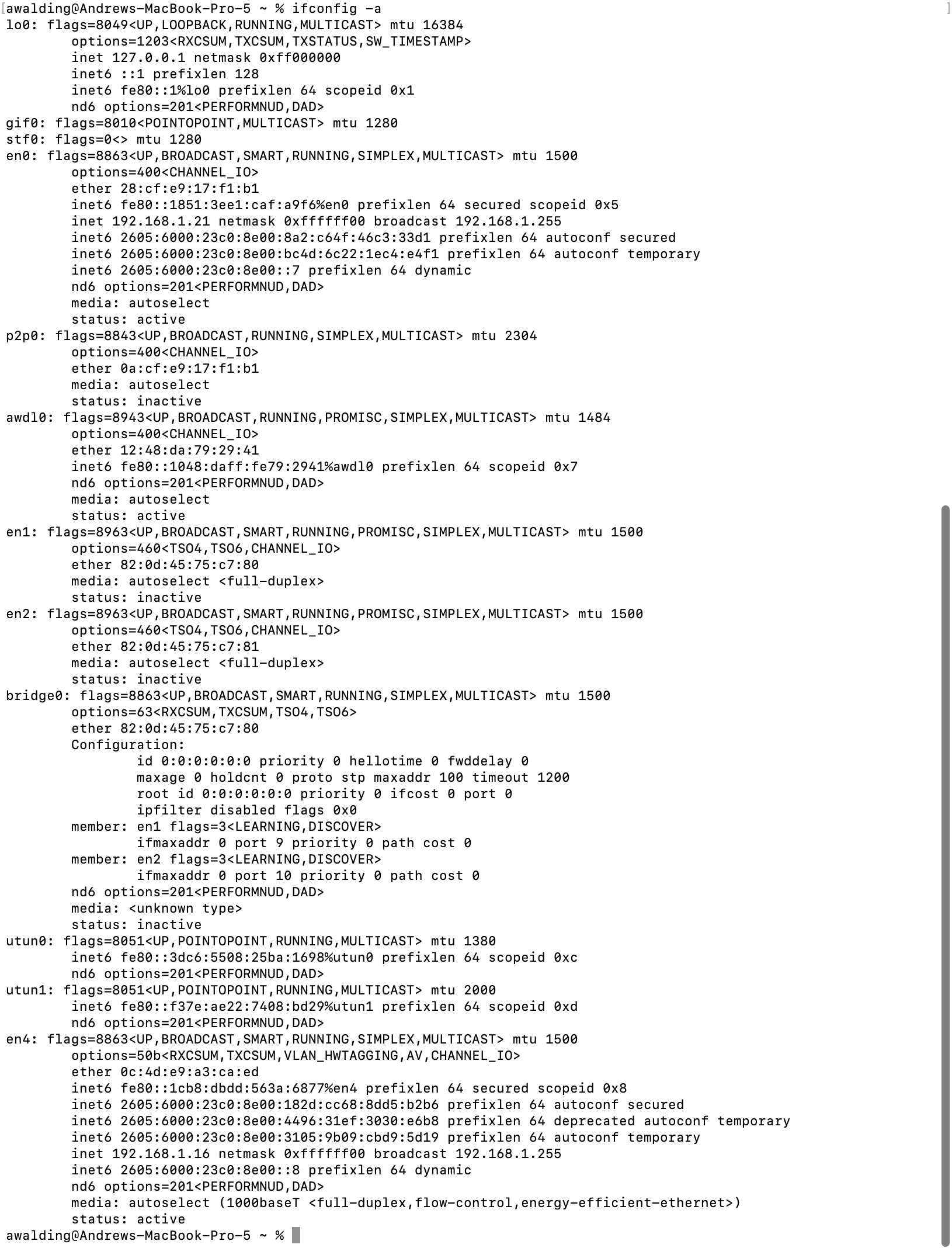

ifconfig -a
Screen Shot 2016 11 17 at 3.24.32 PM

You can see my machine is running “Dual Stack” since it has both IPv4 (inet) and IPv6 (inet6).  Yours should be as well.



This is a lot of info, so the way to zoom in on lets say the Ethernet interface, which I am using (en0) is to use the following command:

ifconfig -L en0 inet6
2020 04 19 08 43 04

The -L switch turns on the display of the address Lifetimes.  The ‘inet6’ limits the IPv6 information.

 Next, let’s take a slightly deeper dive with netstat.

The following command displays the routing table in your computer (this may take some time to completely finish):

netstat -r -f inet6
Screen Shot 2016 11 17 at 3.30.12 PM

 We can clearly see the IPv6 Routing table with the Link Local addresses, Global Unicast addresses (in my case), and the IPv6 Multicast groups.

Let’s see if there has been any general IPv6 traffic on the interfaces.  Now this next command will output a ton of statistics, and we only show a partial output here.

netstat -s -f inet6
Screen Shot 2016 11 17 at 3.43.29 PM



Near the bottom of the output will show various packet counts.

Pretty cool.

How about PING and TRACE ROUTE for IPv6?  Sure.  Here is how you Ping in IPv6:

ping6 ::1
Screen Shot 2016 11 17 at 3.47.01 PM

Here are the ping6 options:

Screen Shot 2016 11 17 at 3.48.38 PM



And here is the Trace route command:

traceroute6 www.facebook.com
Screen Shot 2016 11 17 at 4.00.40 PM

Here are the Tracert options:

Screen Shot 2016 11 17 at 4.01.48 PM

What is that did not work? Hmm.

You may want to check the DNS servers to see if you are able to resolve IPv6.  On Mac, do this with:

scutil --dns | grep nameserver | grep "::"

This should show you IPv6 nameservers.  If you get nothing, then leave off the last grep, and you should only see IPv4.

That does not mean that nameservers or destinations do not support IPv6.

You can try a dig and see if you get ‘AAAA’ records:

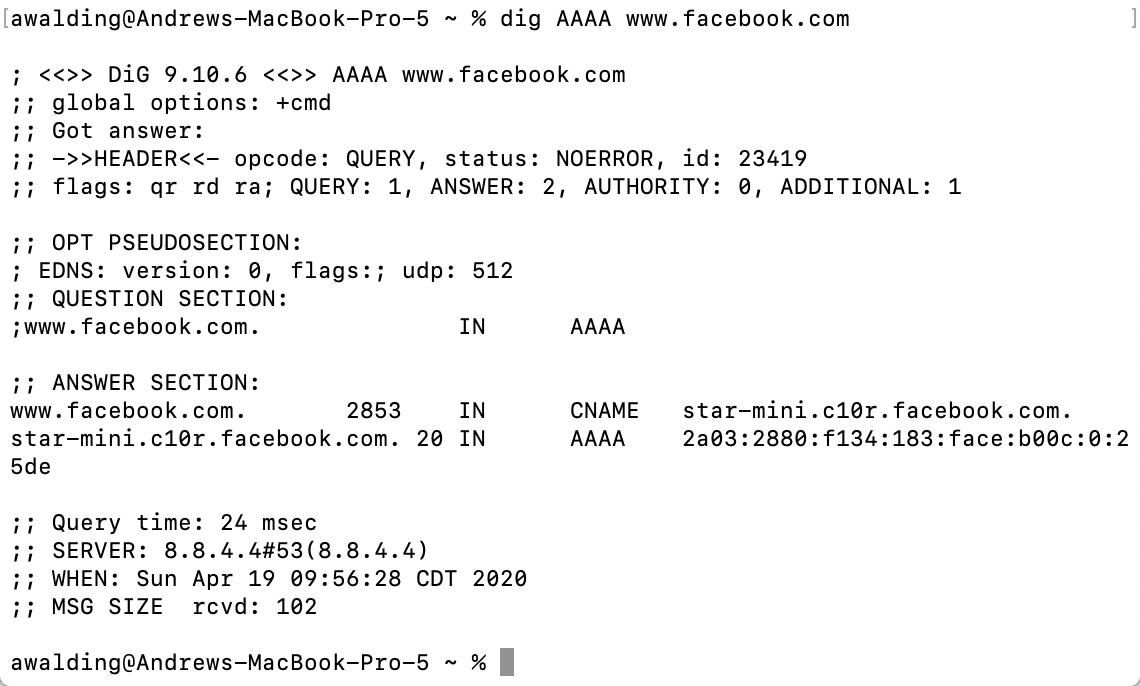

dig AAAA www.facebook.com

Here is what it might look like when it works:

2020 04 19 09 56 44

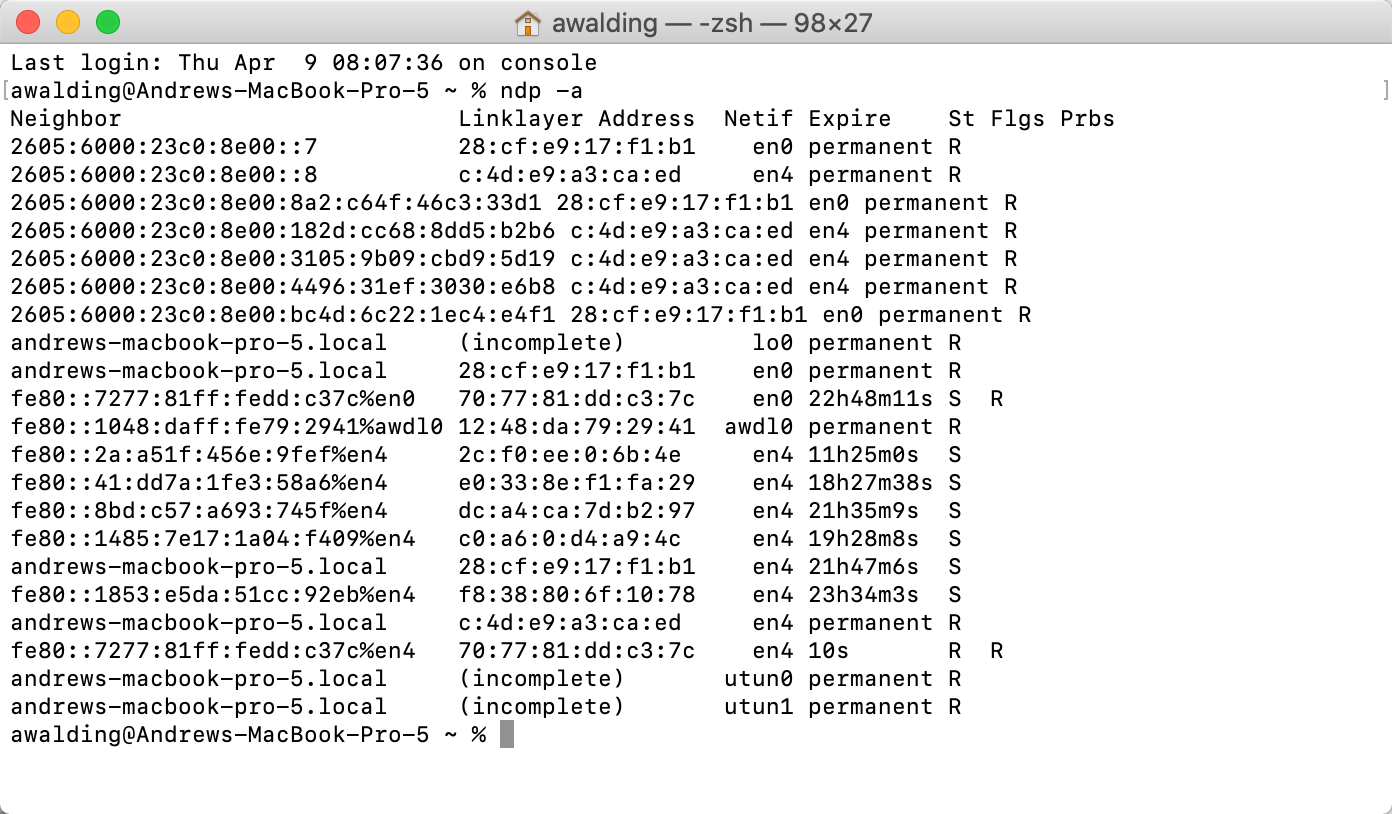

OK – what about the Neighbor Discovery?  You use the following command: ndp -a

It will take some time to complete, so be patient.

2020 04 19 08 31 20

To see your IPv6 settings on your Mac use the following command – this will display all settings – if it is a 1 or a 0 then this is most likely a switch (0=off 1=on):

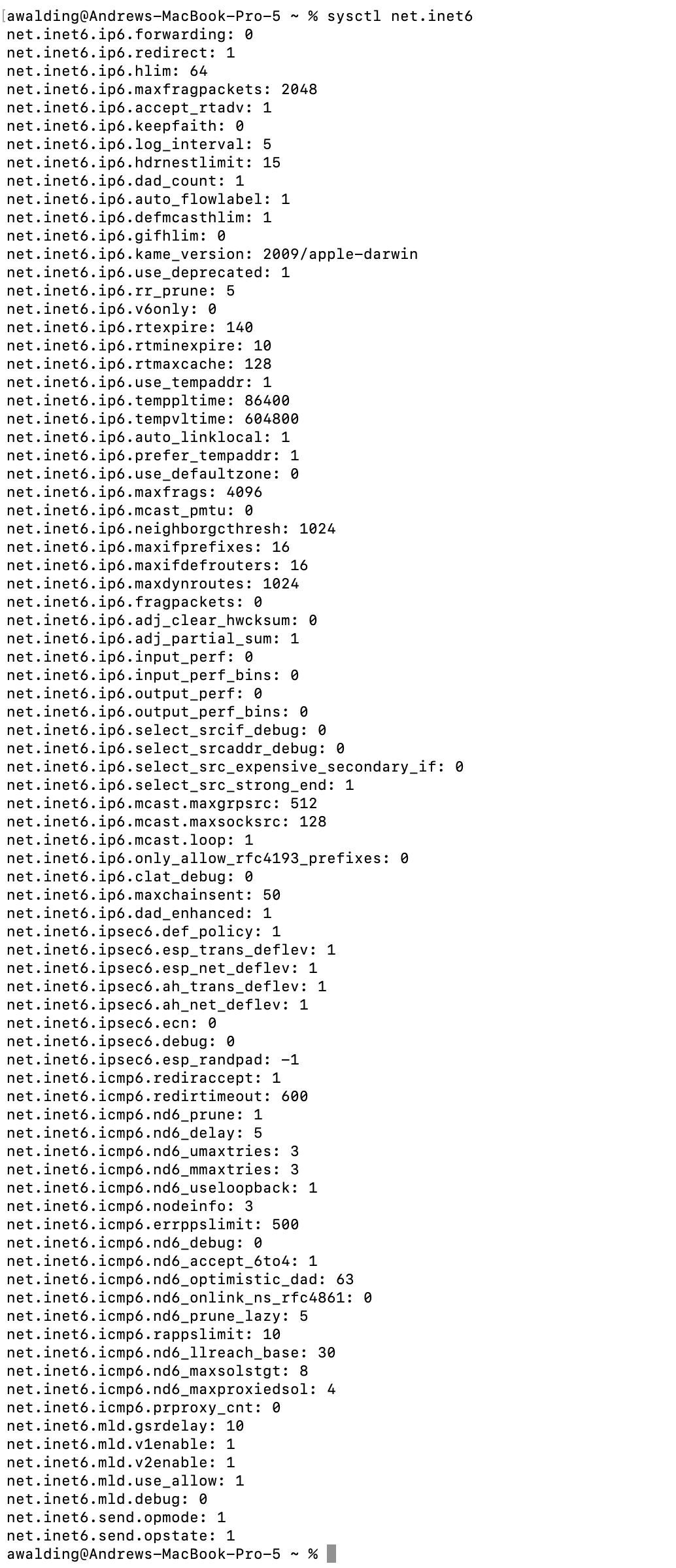

sysctl net.inet6
2020 04 19 10 30 11



We won’t go into how to change these settings here, but you could overwrite these with the sysctl command.

It is often useful to pipe this to grep to search for something in particular.  For example, does you system have temporary IPv6 addresses? and what are the settings?

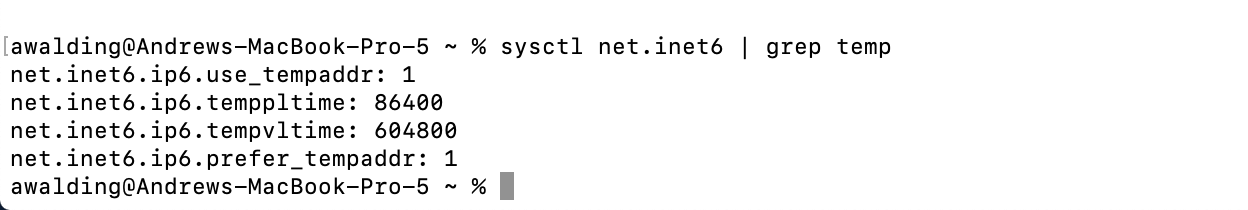

sysctl net.inte6 | grep temp
2020 04 19 10 36 21

We hope this helps you get started on IPv6 on your MacOS machine.
