Detecting ECMP in Linux using Paris and Dublin Traceroute

Equal-Cost Multi-Path (ECMP) is a forwarding mechanism for routing packets along multiple paths of equal cost with the goal to achieve almost equally distributed link load sharing. This, of course, significantly impacts a router’s next-hop (path) decision.

For further details, look at RFC 2991, “Multipath Issues in Unicast and Multicast Next-Hop Selection,” and RFC 2992, “Analysis of an Equal-Cost Multi-Path Algorithm.”

How can we see this?  Normal Traceroute expects the network to do traditional routing, where all your traffic follows the same path unless there is a failure in the network to trigger a routing table update.  Chances of this are extremely small in the real world.



So how can we detect if ECMP is in play in the network your traffic is traversing?  The answer is we need a special version of Traceroute that can figure out if ECMP is in play.

There are two solutions: Paris Traceroute and Dublin Traceroute.

The initial version of traceroute was implemented by Van Jacobson based on a suggestion by Steve Deering (the inventor or Multicast and what is now IPv6).

Paris traceroute was implemented by Xavier Cuvellier. Debugged and enhanced by Brice Augustin.  The current version is available at: https://www.paris-traceroute.net

Dublin Traceroute was built on top of Paris Traceroute and is written by Andrea Barberio from, you guessed it, Dublin.  You can find Dublin Traceroute at https://dublin-traceroute.net/README.md

What is the difference?  Dublin Traceroute uses the techniques invented by the authors of Paris-traceroute to enumerate the paths of ECMP flow-based load balancing, but introduces a new technique for NAT detection.

Let’s look at Paris Traceroute first.

To check and see if you have this: simply type:

paris-traceroute

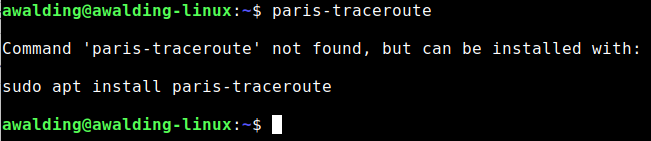

Screenshot from 2018 10 24 11 27 42

I did not have it, so I followed the instructions to install it on my Ubuntu Linux box.

sudo apt install paris-traceroute

Once done, I now get the proper response:

Screenshot from 2018 10 24 11 32 00

All is good.  You can use the following command to see what all the command line options are:

paris-traceroute -h

Now let’s see if we have Dublin Traceroute installed:

dublin-traceroute

Screenshot from 2018 10 24 14 17 12

Install it with:

sudo apt-get install dublin-traceroute

To get the help type:

dublin-traceroute --help

Great!

Let’s run them both to see what happens when we traceroute to Google’s public DNS at 8.8.8.8.  First, here is a normal, regular traceroute:

Screenshot from 2018 10 24 14 32 52

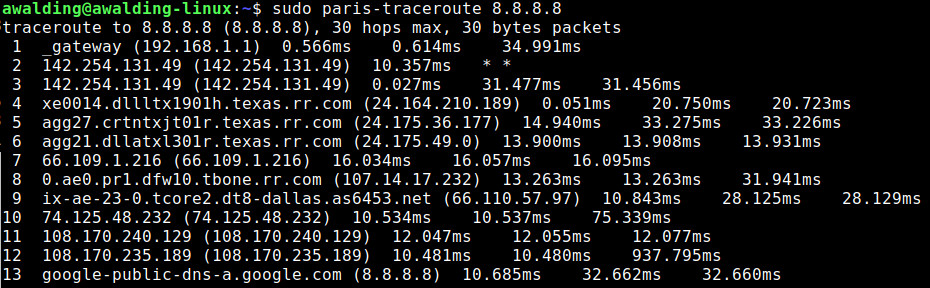

Now, let’s use Paris Traceroute:

Screenshot from 2018 10 24 14 36 31

Now Dublin Traceroute (you will note I add the ‘-n 3’ parameter as this limits Dublin Traceroute to 3 probes which is the same as the Paris Traceroute default):

Screenshot from 2018 10 24 14 43 31

Very different.

To be fair, I am doing this from behind my home router which is a NAT.  So Dublin is successful as advertised in seeing there is some ECMP going on.  Look at the 8th hop.  We see there are two different IP addresses, and we see them toggling.  Same thing in the 12th hop.

If you want to dig a bit deeper, I have also enclosed a Wireshark packet capture of the three traceroutes for your perusal and deeper dissection.  Traceroute Comparison Capture pcapng for Wireshark

So cool!  I hope, like me, this is the last time you ever use regular traceroute!

Happy Tracerouting!!
