Modifying the Wireshark Window Title

Did you know that you can customize the Wireshark window title?

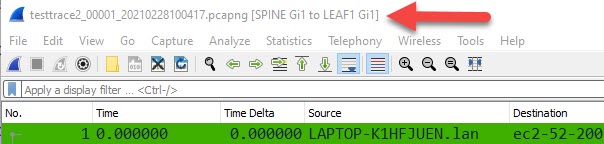

The first time I ran across this was when using GNS3.  Whenever I did a packet capture in my GNS3 environment the Wireshark window title would be changed to show which link I had done the capture on:

2021 02 28 10 30 31

A little digging, and I found out that you can modify the window title.  For example you can show the file path of the capture file, the current profile name, and version number.

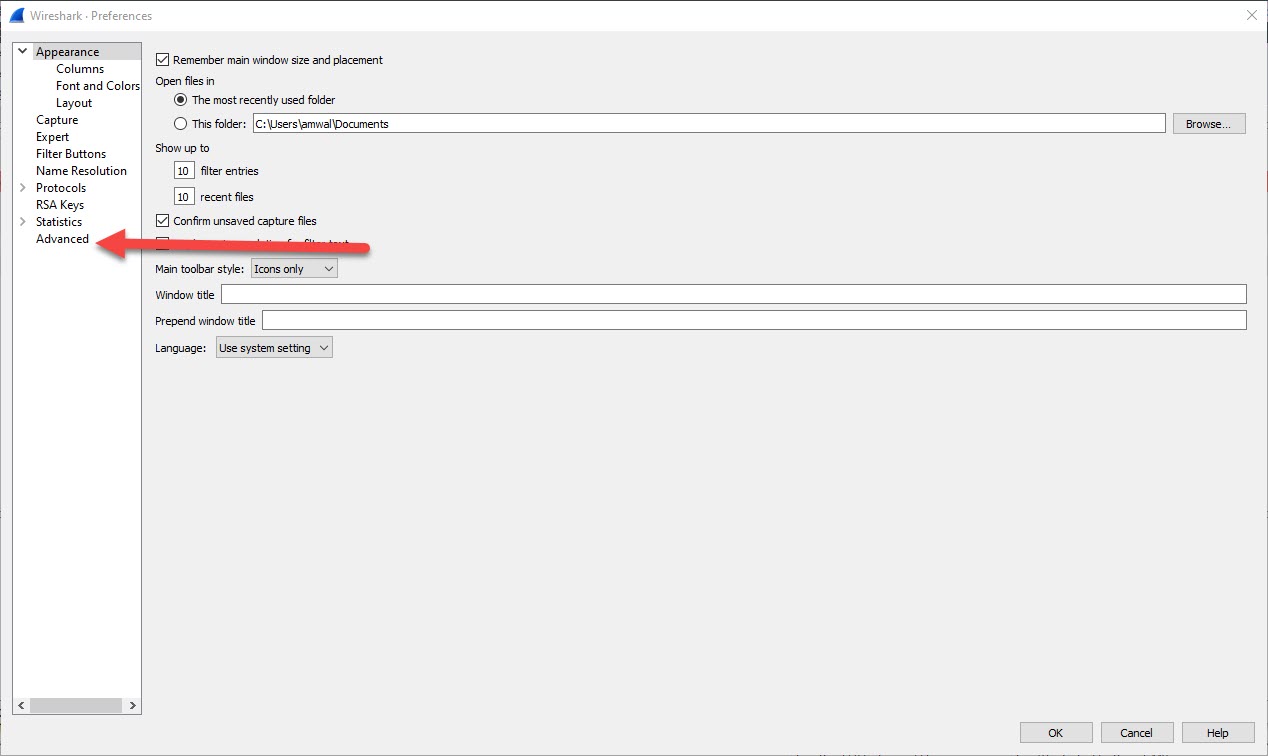

To set a new window title, in the Wireshark GUI, select Edit> Preferences.  You will get the Wireshark Preferences pop up window:

2021 02 28 10 22 22

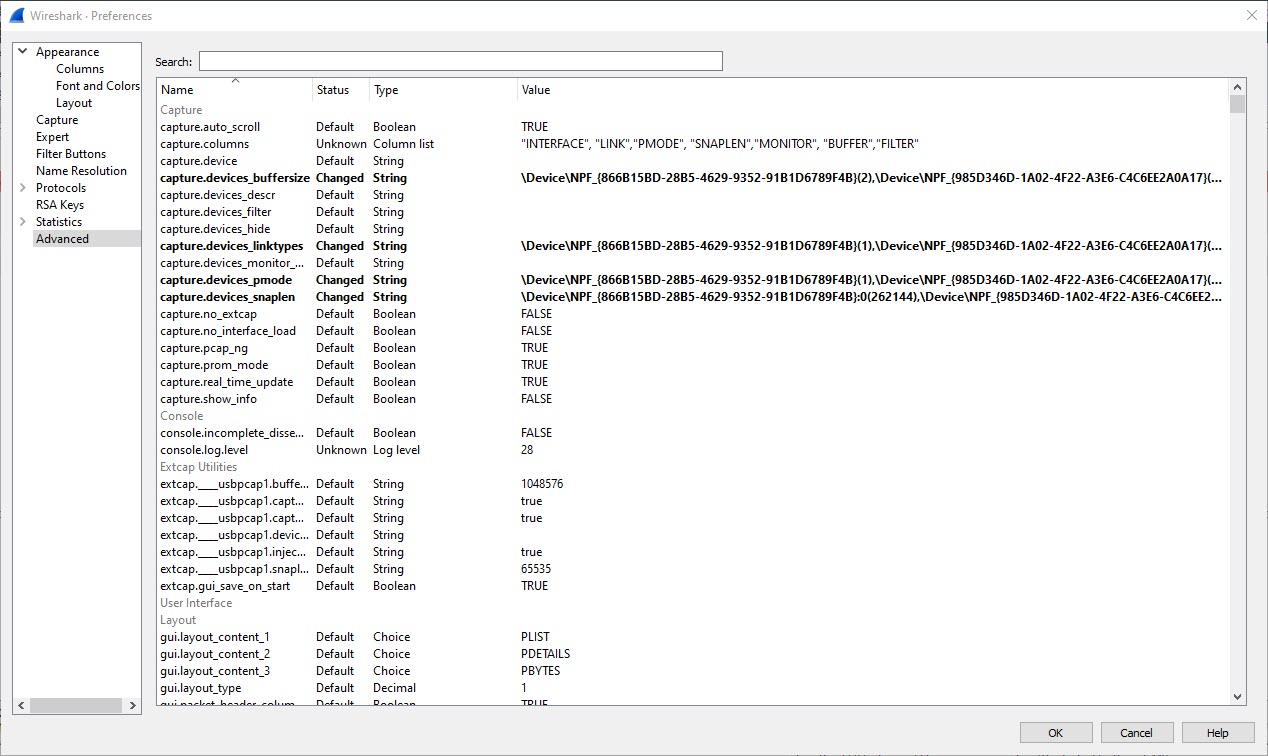

Note that there is an Advanced Option.  Click on Advanced:

2021 02 28 10 24 16

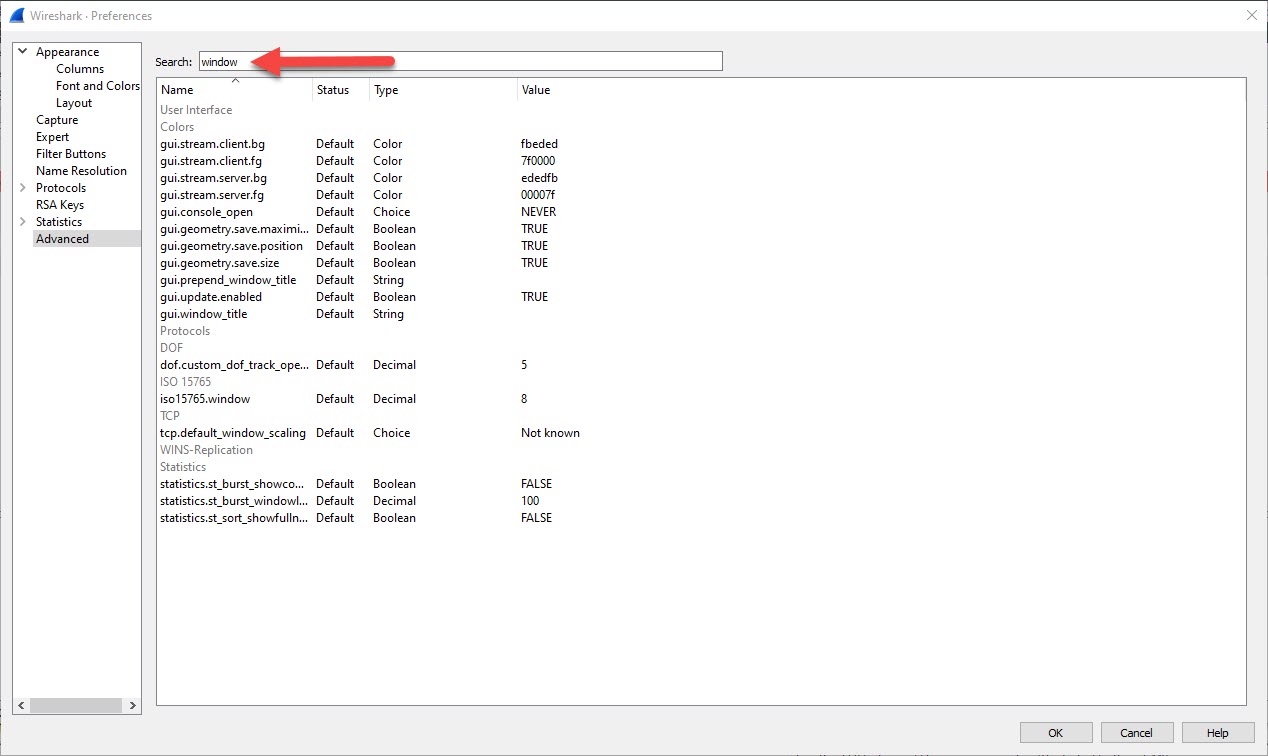

Now, in the search bar of this window, enter “window” (as you type that word, the search is performed – also be careful to not hit ‘Enter’ as I always do, else the window will close):

2021 02 28 10 26 31

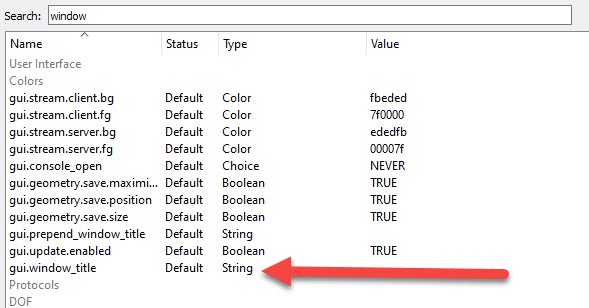

Now, the setting you are looking for is called “gui.window_title”:

2021 02 28 10 28 19

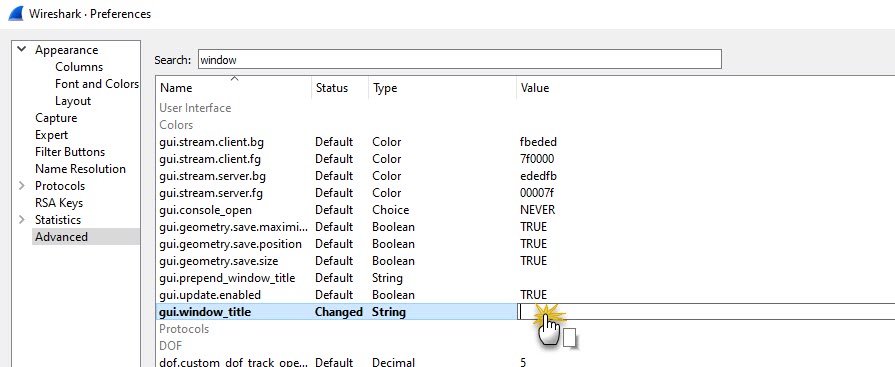

Now you want to double click in the Value column and a box will appear where you can change the value:

2021 02 28 10 33 38

You can put anything here as just a string.  Even better you can put some variables here as well:

So here is an example:

2021 02 28 10 40 05

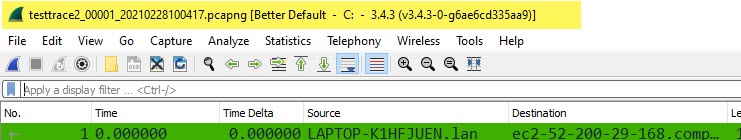

When done, click on OK.  Now look at your main Wireshark screen:
2021 02 28 10 42 30
Nice!
But I would make it even better:
Profile: %P %S Path %F %S Wireshark Version: %V
2021 02 28 10 46 22

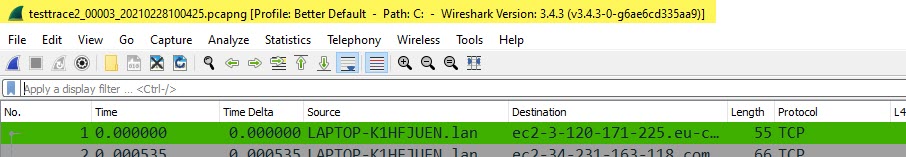

The result:
2021 02 28 10 48 23
LOVE THAT!
Remember you can always get your profiles here: https://www.cellstream.com/wireshark-profiles-repository/
I hope you find this article and its content helpful.  Comments are welcomed below.  If you would like to see more articles like this, please support us by clicking the patron link where you will receive free bonus access to courses and more, or simply buying us a cup of coffee!, and all comments are welcome!
